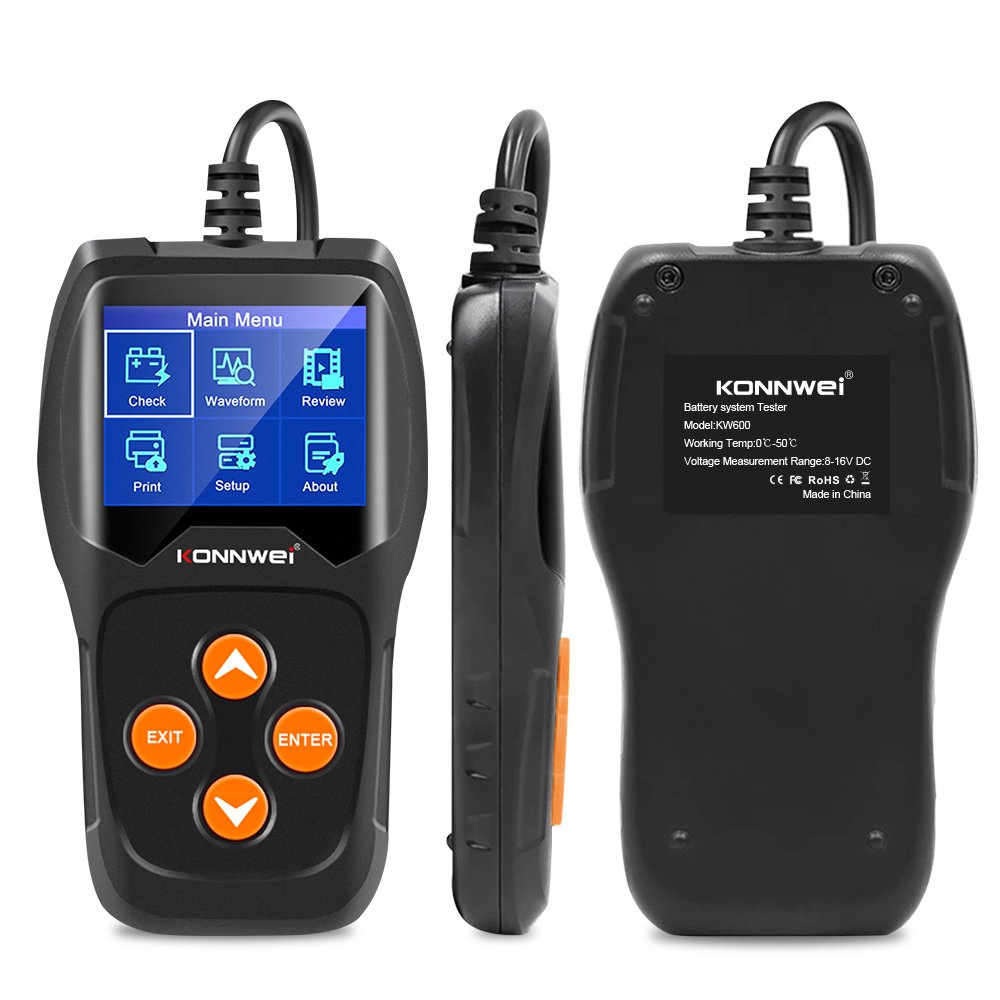

KONNWEI KW600 12V car battery tester is fast and powerful battery tester.
It is able to effectively analyze and read important car data such as voltage, internal resistance, cold
cranking amp and AH capacity, battery health and charge status.
It provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.
Test results display in both text and graphing, but the real-time battery voltage showing in a waveform.
With an intelligent 2.4inch LCD screen, reading access is practical and rapid!
Lifetime update service is supported by KONNWEI BTlink app.
Free upgrade system and print data.
OEM orders are welcome (>=500pcs):
(1) Print logo on tool,
(2) Change model on tool,
(3) Design colorful box
(4) Design User manual
(5) Print logo on bag
(6) Change logo on system.
Advantages:
TOP rated battery tester on e-commerce platforms
The first color screen battery tester
high quality Chip.
Graphical battery test results.
U-I waveform, also can be printed out
Test results storage and review.
Battery report can be printed out on PC.
Support free update online life time.
Function :
System voltage 12 Volts and Voltage test in waveform
Test Result Good, Recharge or Replace
Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (mΩ) and Life in percentage (%)
starter Cranking system and alternator Charging system
Record and re-play battery data, Life-time free update service
Feature :

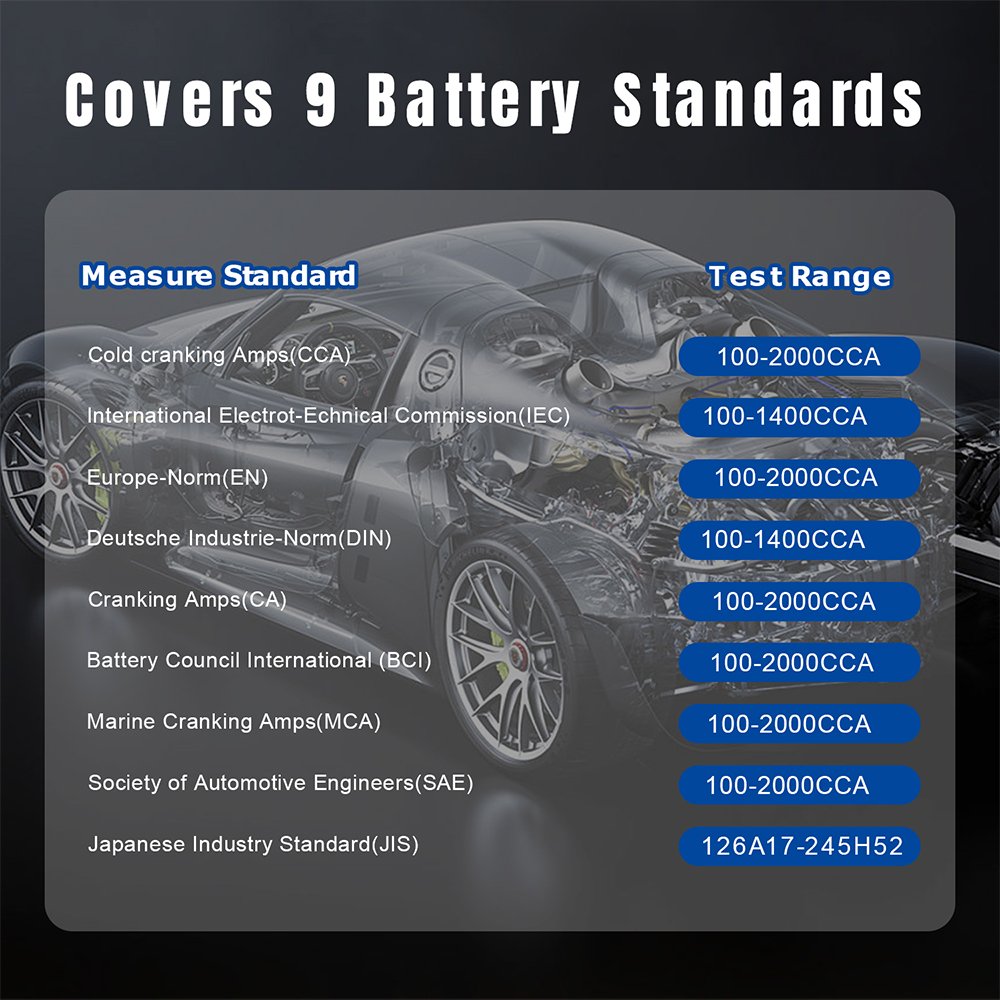

Measure Standard: CCA 100-2000 ,BCI 100-2000 ,CA 100-2000 ,MCA 100-2000,
JIS 26A17-24SH52 ,DIN 100-1400 ,IEC 100-1400 ,EN 100-2000 ,SAE 100-2000,
GB 100-1400
Specifications and Support Languages:
1.Weight:0.4Kg
2.Display: Color TFT LCD Screen
3.System Voltage: 12 Volts
4.Input Voltage Range:8V-16V
5.Power Requirements: No internal batteries required.
6.Power on when hooked up during testing.
7.Operating Temperature:0℃-50℃
8.Storage Temperature:-20℃-70℃
KONNWEI SCAN Tool Supports One-click Remote Update:
1. Please press and hold any button of konnwei scan tool, then connect the scanner to PC with USB cable included in the package, the screen will be turned to “UPDATE MODE”
Notice: Please turn off anti-virus software when installing the update tool, otherwise it will not be able to install the driver properly.
2. download and Install the “BTlink “ program to your PC( Windows 7 /8/10 /xp ),
you will find the below page, All you need is one-click, the program will search the update from our server, download and upgrade it by itself. No need any other operation, save the time and money.
3. Wait for the update process finished, the scanner will be ready to go! we will update to latest version before shipping out, normally there is no need to update for a long while.
