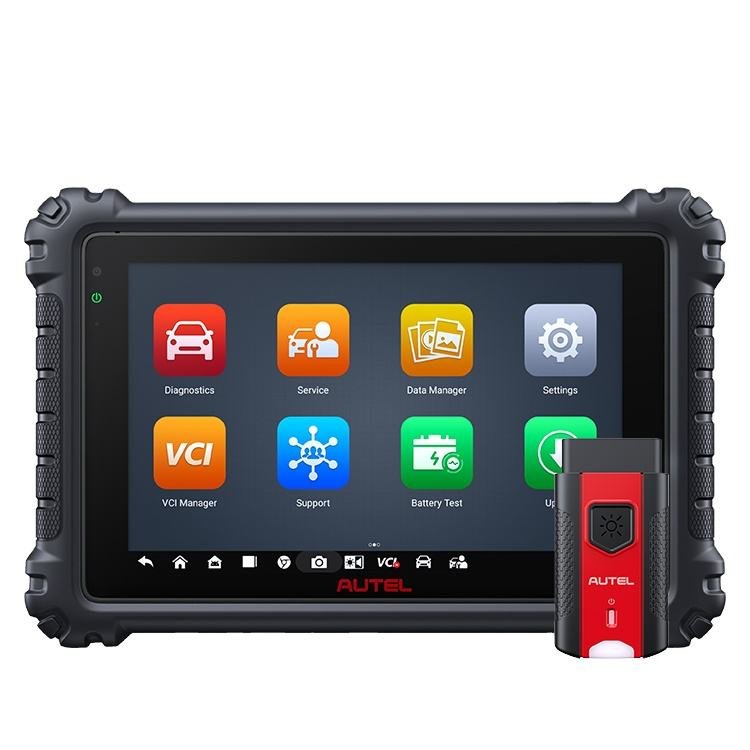

Products Description
MK906pro is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the mk906bt efficiently provides comprehensive vehicle
diagnostics and analysis.
diagnostics and analysis.
|
Operating System
|
Android™ 4.4.2, KitKat
|
|
Processor
|
Samsang Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
|
|
Memory
|
2 GB RAM & 64 GB ROM
|
|
Display
|
8.0″ LED capacitive touch screen with 1024x768P resolution
|
|
Connectivity
|
Wi-Fi (802.11 b/g/n)
USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
|

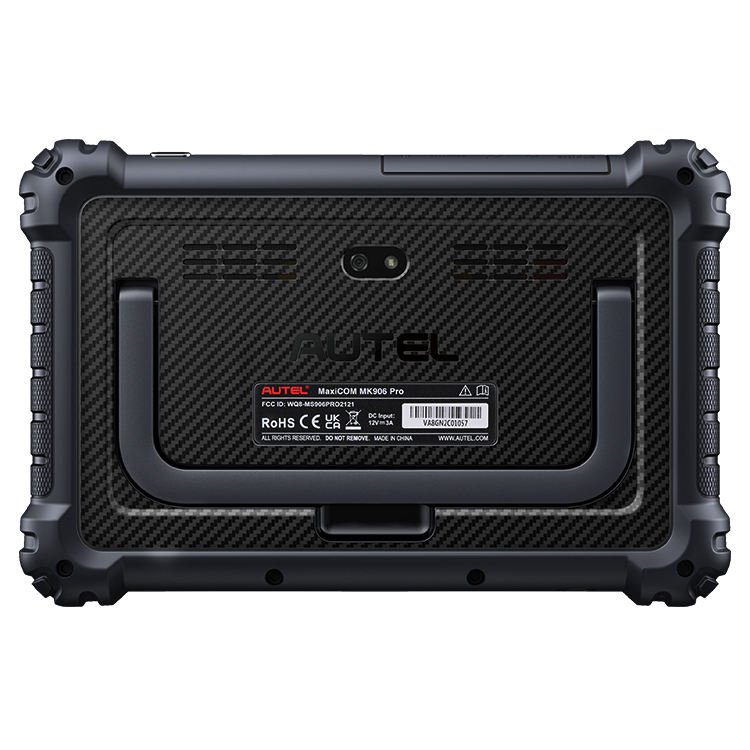

Camera (rear)
|
Rear-facing, 8.0 Megapixel
AF with Flashlight |
|
Sensors
|
Gravity Accelerometer, Ambient Light Sensor (ALS)
|
|
Audio Input/Output
|
Microphone, Single Speaker
3-Band 3.5 mm stereo/standard headset jack |
|
Power and Battery
|
10,000 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply |
|
Input Voltage
|
12 V (9-35 V)
|
|
Power Consumption
|
5 W
|
|
Operating Temperature
|
-10 to 55°C (14 to 131°F)
|
|
Storage Temperature
|
-20 to 70°C (-4 to 158°F)
|
|

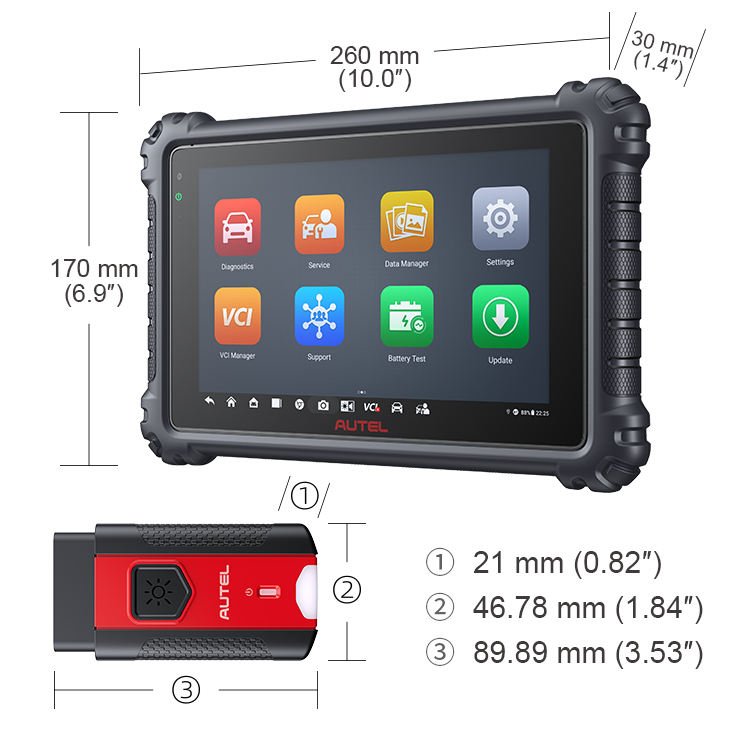

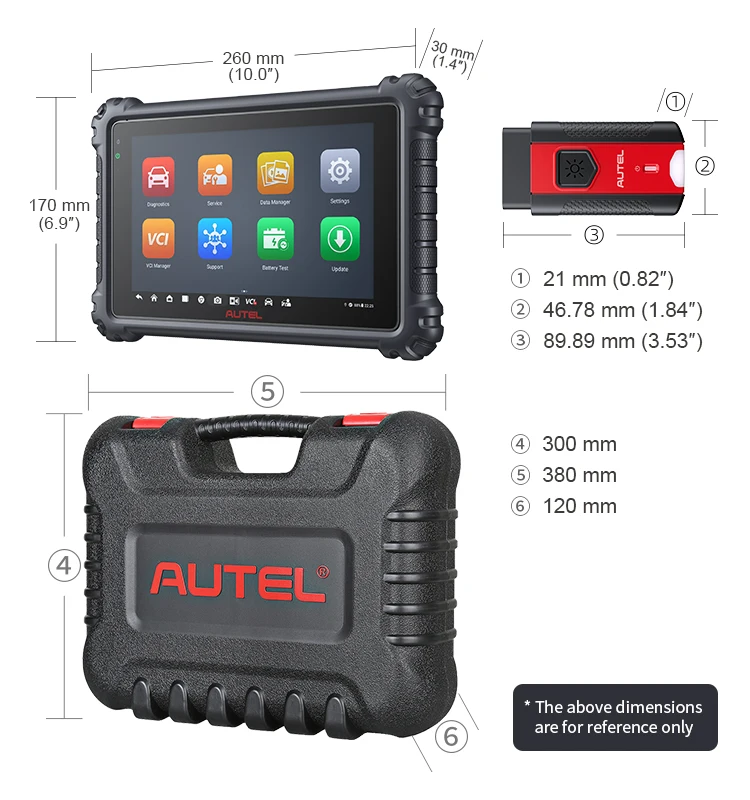

Dimensions (W x H x D)
|
270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
|
|
Weight
|
NW: 1.05 kg (2.3lb.)
|
