Product function: The practical auxiliary tool designed in the process of automotive electrical line maintenance and detection can be used to test the voltage value of the battery voltage polarity conduction inspection light to check the motor tracking and positioning short circuit test ground contact light fault
The cable length of approximately 4.5 meters allows you to easily test the electrical system in any part of the car
Product specifications: External power supply: 12V or 24V DC power supply via vehicle battery
Overload protection current 8A
DC voltage range DC 7~36V
Rated current: 1-8Amp

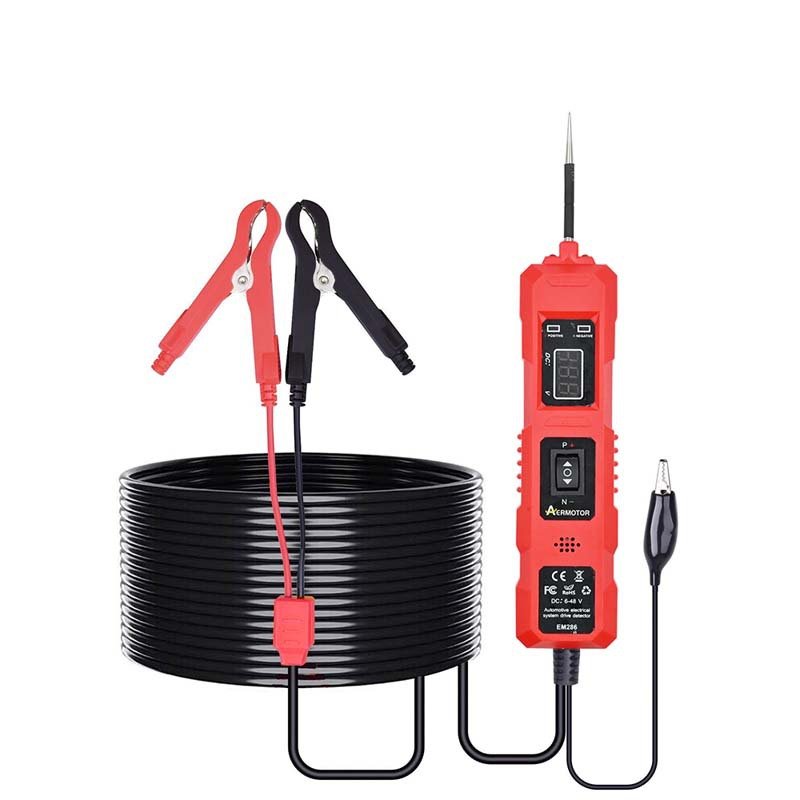

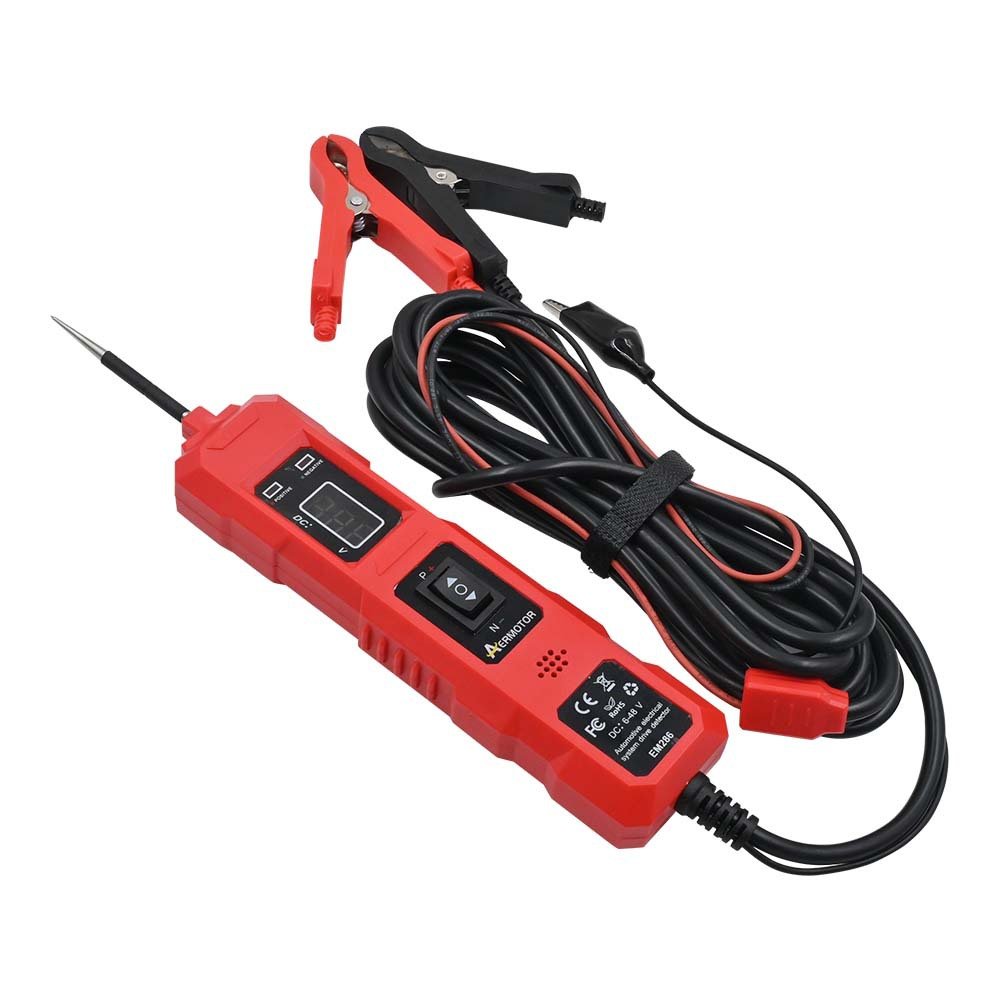

Product name: Automotive electrical circuit tester
Line length: 4.5 m
Machine size: 260*40*28 mm
Box size: 280*132*50mm
Product description
No digital display specifications
A case: 50 sets; Box: 50*40*45cm
Features:
Wide range of applications: The circuit tester can be used to test conductivity, test voltage polarity, check lights, check motors, track and locate short circuits, test poor grounding contact, etc.
Long test cable: The cable length is approximately 13.5 feet, allowing you to easily test any electrical system.
Short circuit protection: The unit has a short circuit protection function, which can immediately detect poor grounding contact.
Simple operation: After the device is simply connected to the vehicle’s battery, the automotive technician can conduct the positive and negative current of the battery to the tip by shaking the power switch forward or backward.
Comprehensive 6-24V DC test kit: Do not use at AC voltage.
Operating instructions:
Unfold the cable of the unit
Clip the red clip to the positive terminal of the vehicle battery
Clip the black clip to the negative end of the vehicle battery
Specifications:

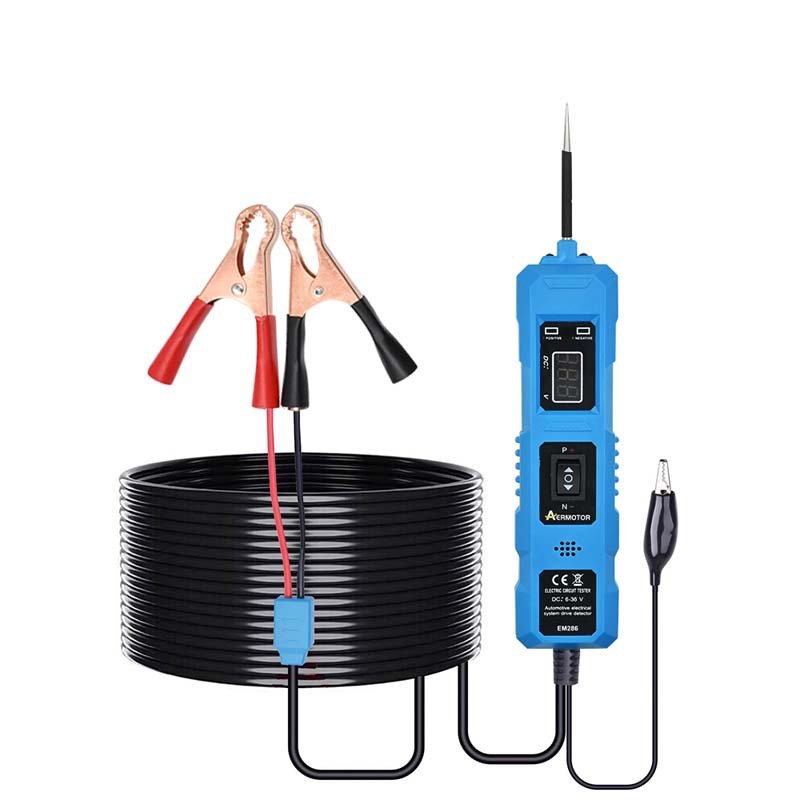

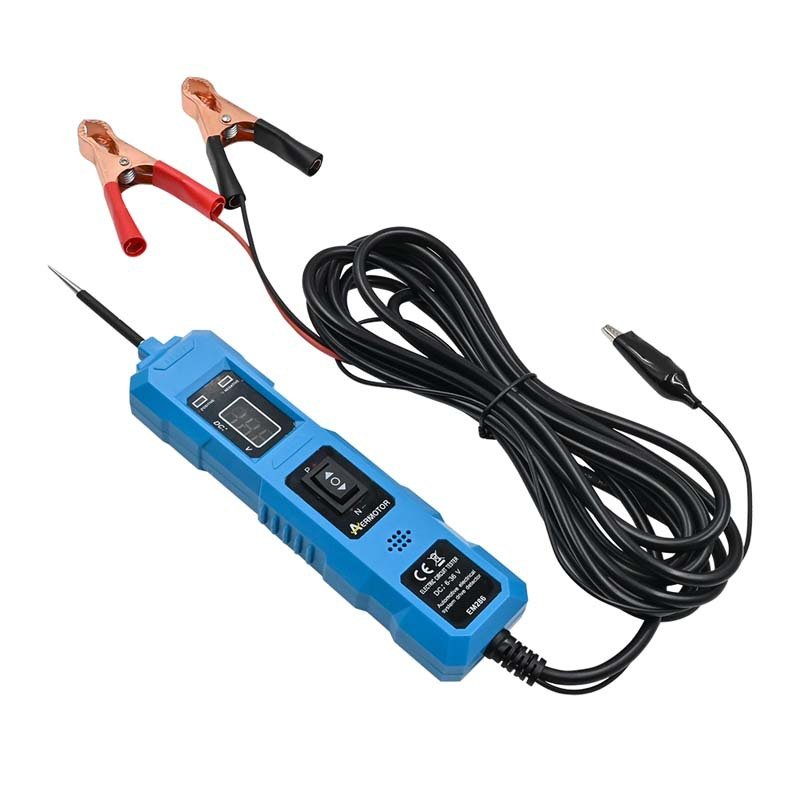

Color: Red，Blue
Operating voltage: 6-36V DC
Cable length: 13.5ft
Overload protection: 8A (When the current exceeds 8A), this will automatically disconnect the current.)
Packing size: 27.6 * 9 * 4cm
Packing weight: 320g
Packing list:
1 * circuit tester
2 * Instruction manual
