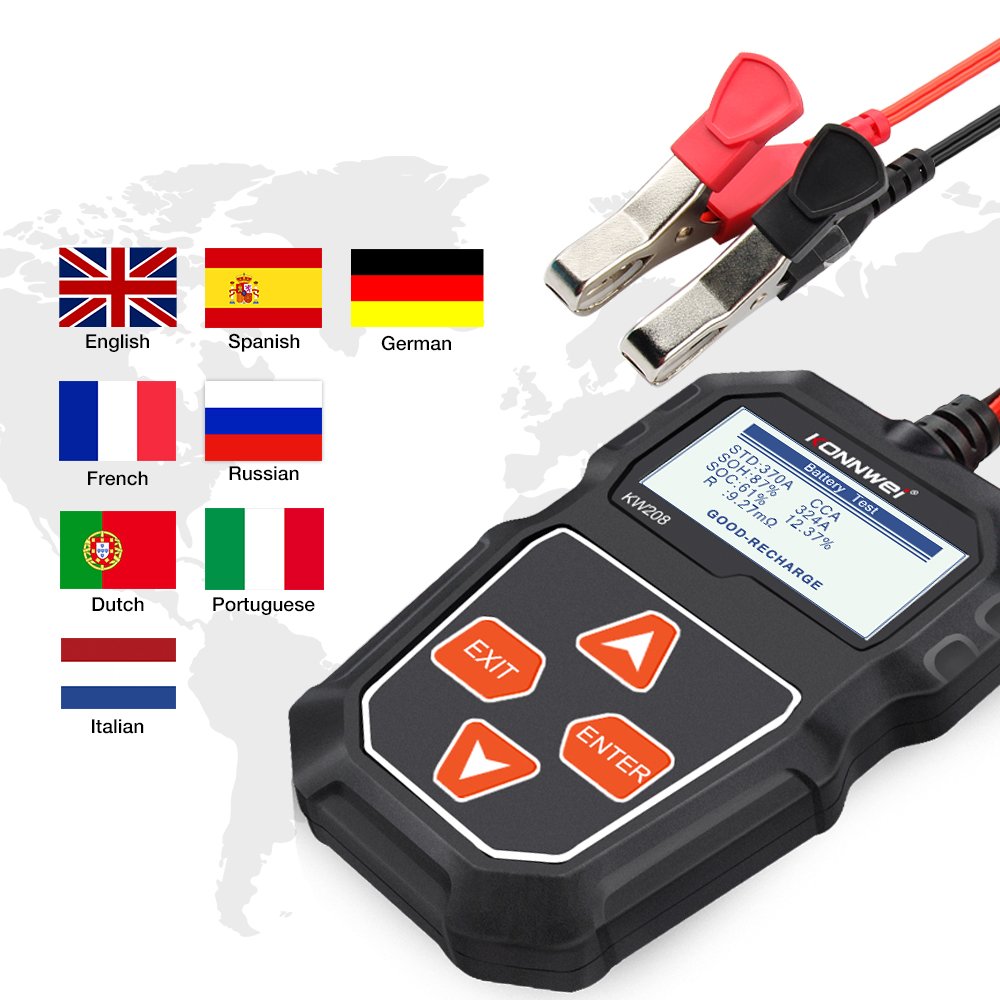

KONNWEI KW208 Auto Battery Analyzer For All 12V Cars Cheap but Useful
KW208 is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.
[ACCURATE MEASUREMENTS]
This professional automotive battery tester provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.
[WIDELY COMPATIBLE]

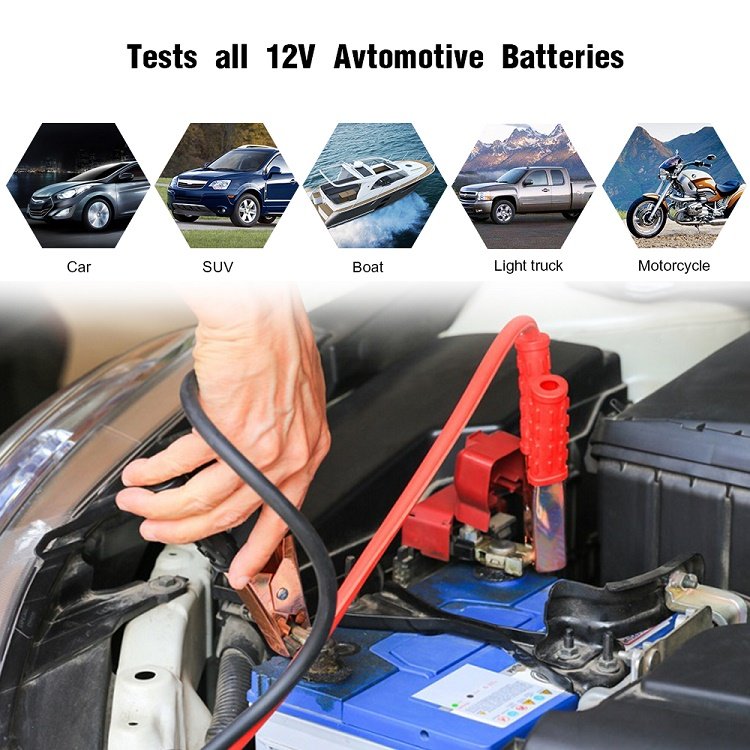

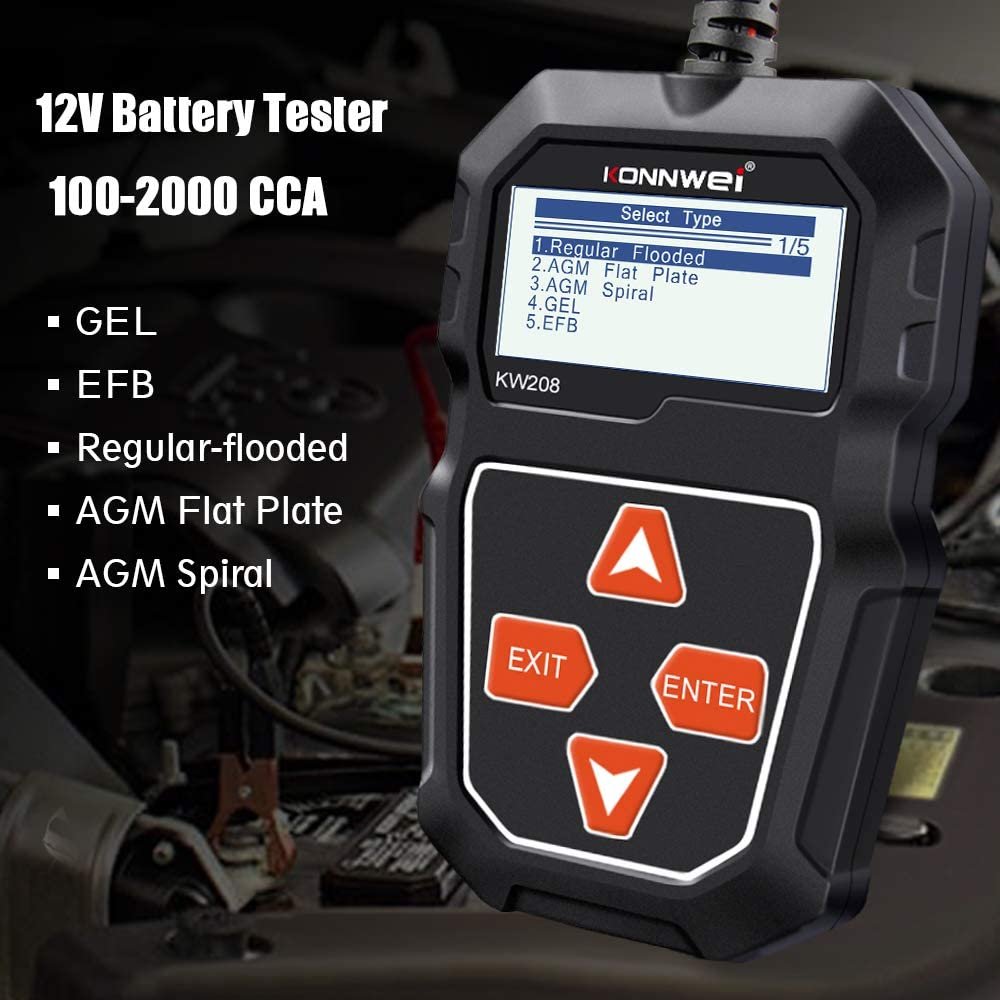

Beginner or expert, this car battery diagnostic tester can be used with a wide selection of 12V 100-2000 CCA regular flooded batteries, AGM flat plate, AGM spiral, as well as GEL batteries.
OEM orders are welcome (>=1000pcs):
(1) Print logo on tool,
(2) Change model on tool,
(3) Design colorful box
(4) Design User manual
(5) Print logo on bag
(6) Change logo on system.
The major battery standards CA, CCA, BCL, MCA, JIS, SAE, EN, GB, DIN and IEC are supported.
Measure Standards: CCA 100-2000, BCI 100-2000 ,CA 100-2000, MCA 100-2000,
JIS 26A17-24SH52, DIN 100-1400, IEC 100-1400 ,EN 100-2000, SAE 100-2000, GB 100-1400
System Voltage 12 Volts ,
Input Voltage Range 8V-16V,
Power Requirements are no internal batteries required,Power on when hooked up during testing.

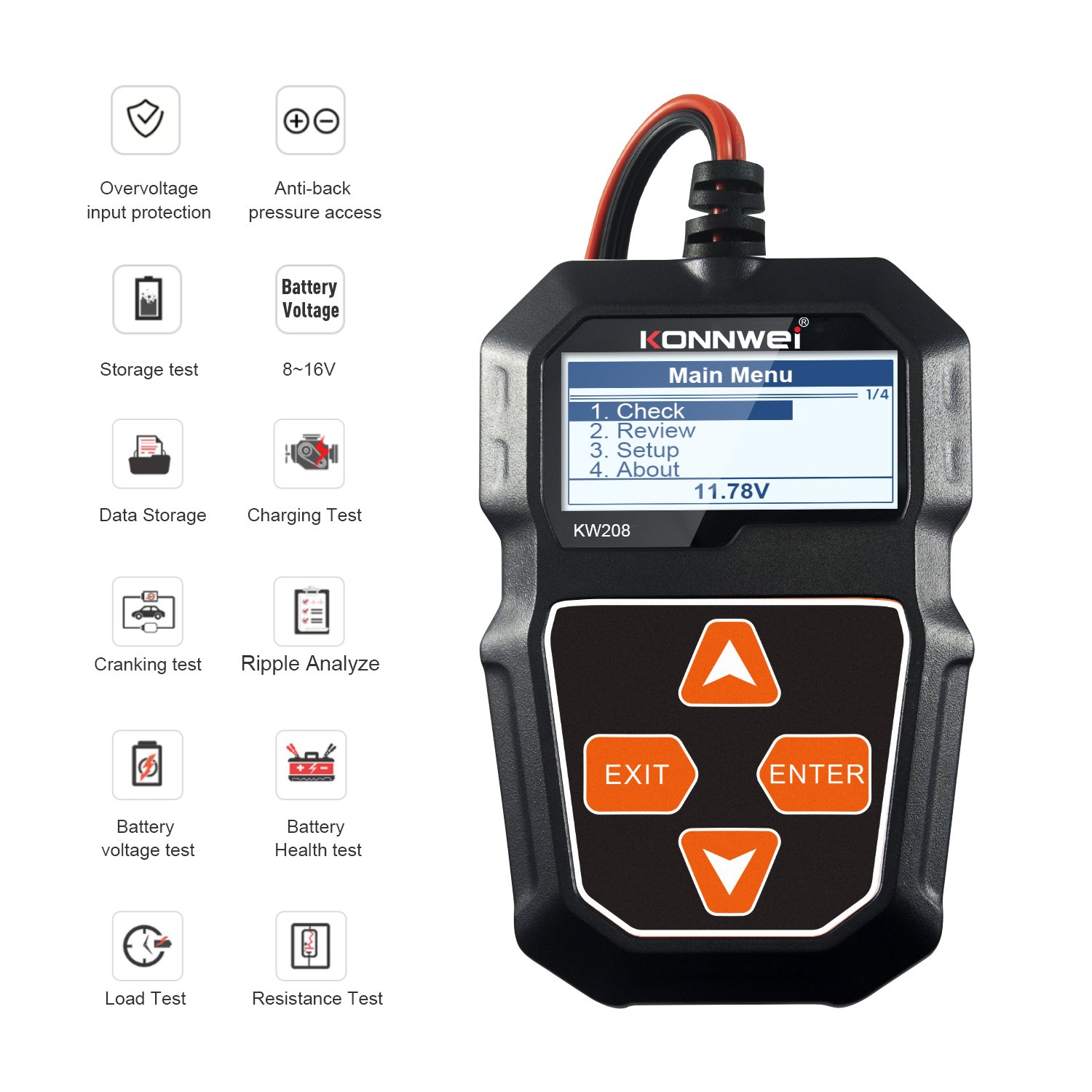

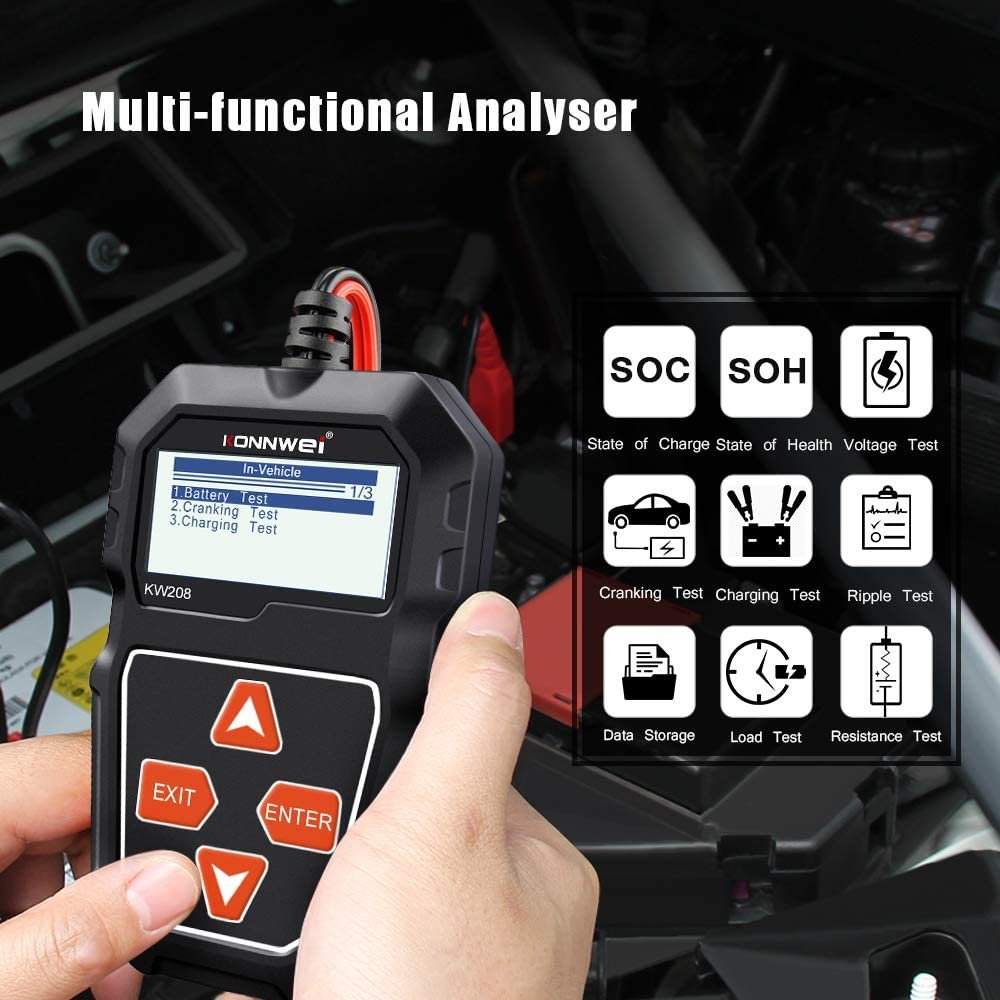

KW208 battery tester key functions:
1.System voltage: 12 Volts
2.Test Result: Good, Recharge or Replace
3.Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4.Internal resistance value (mΩ)
5.Life in percentage (%)
6.Cranking system
7.Charging system
8.Voltage test in waveform
9.Battery test, cranking test, charging test and other additional functions.
