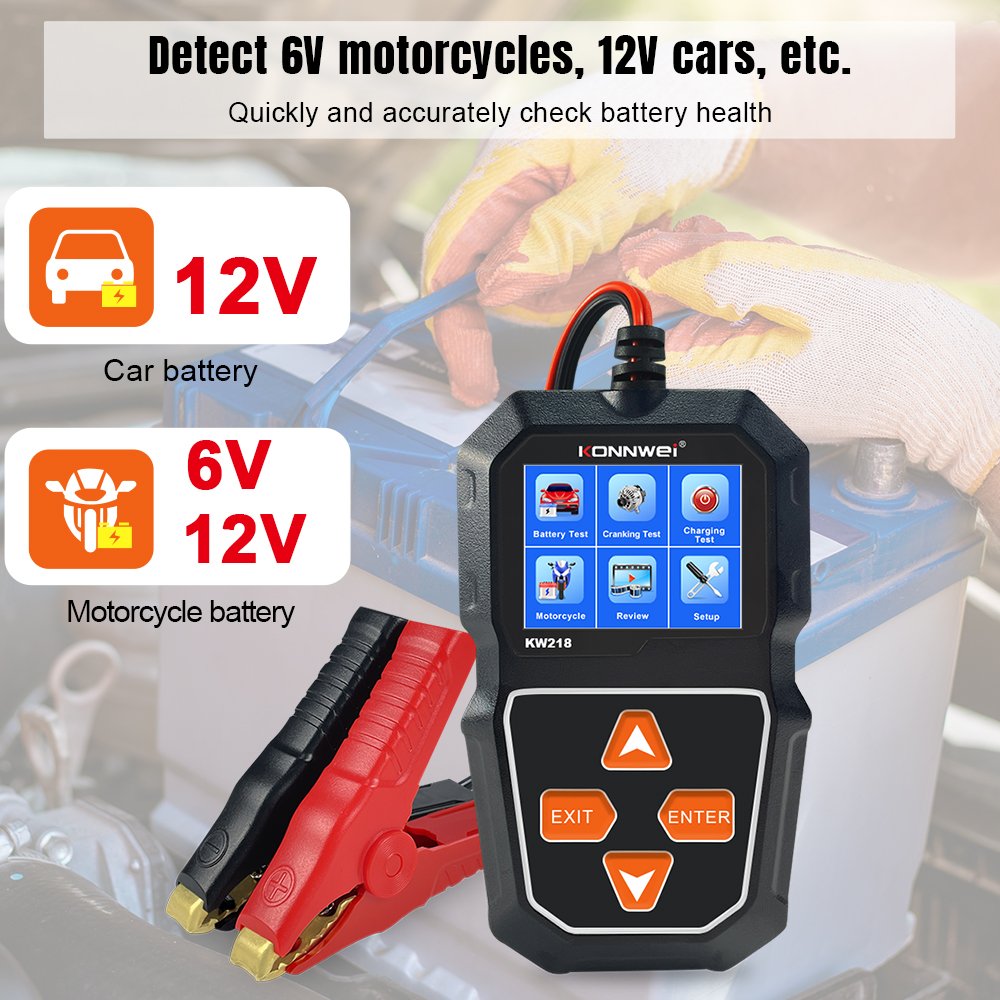

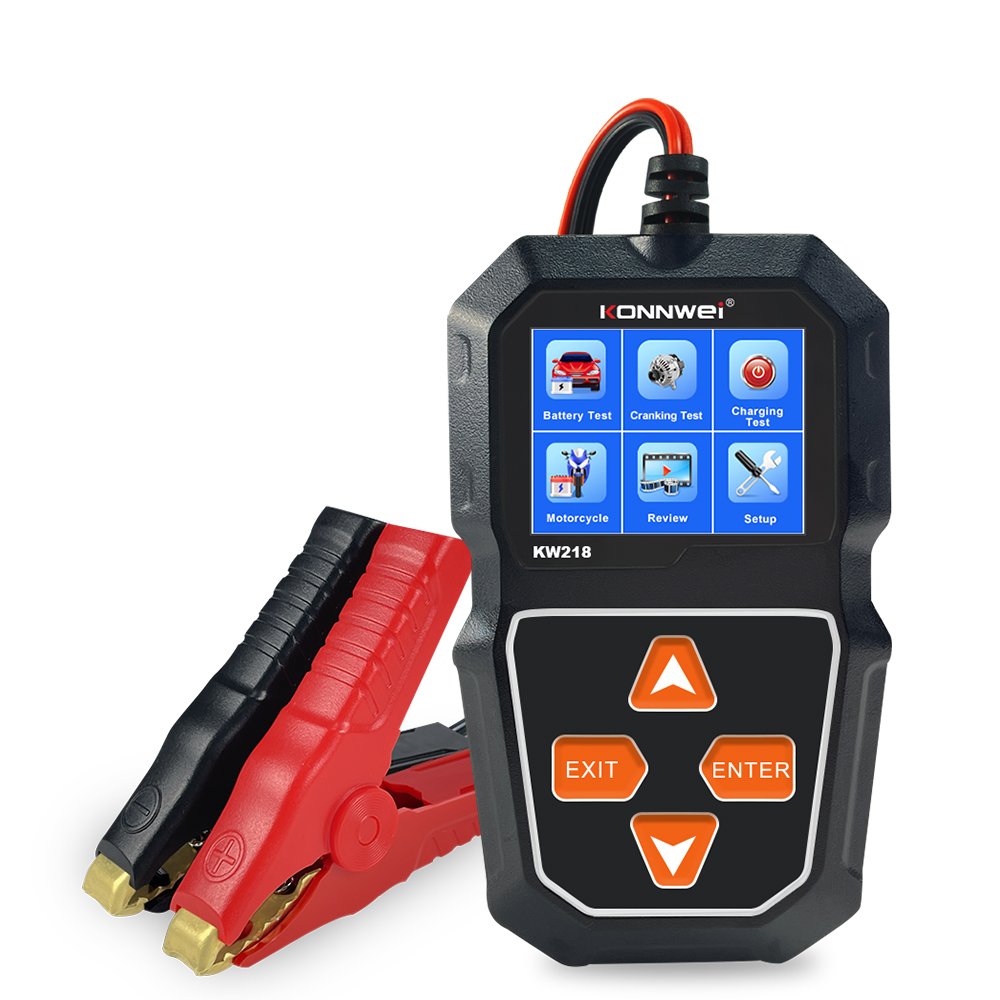

KONNWEI KW218 Auto Battery Analyzer For All 6V 12V Cars Motorcycle
KW218 is able to effectively analyze and read important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status.
[ACCURATE MEASUREMENTS]
This professional automotive battery tester provides accurate results, calculates the cold cranking capability of the battery and the aging extent, allowing for a quicker, more precise car repairing.
[WIDELY COMPATIBLE]

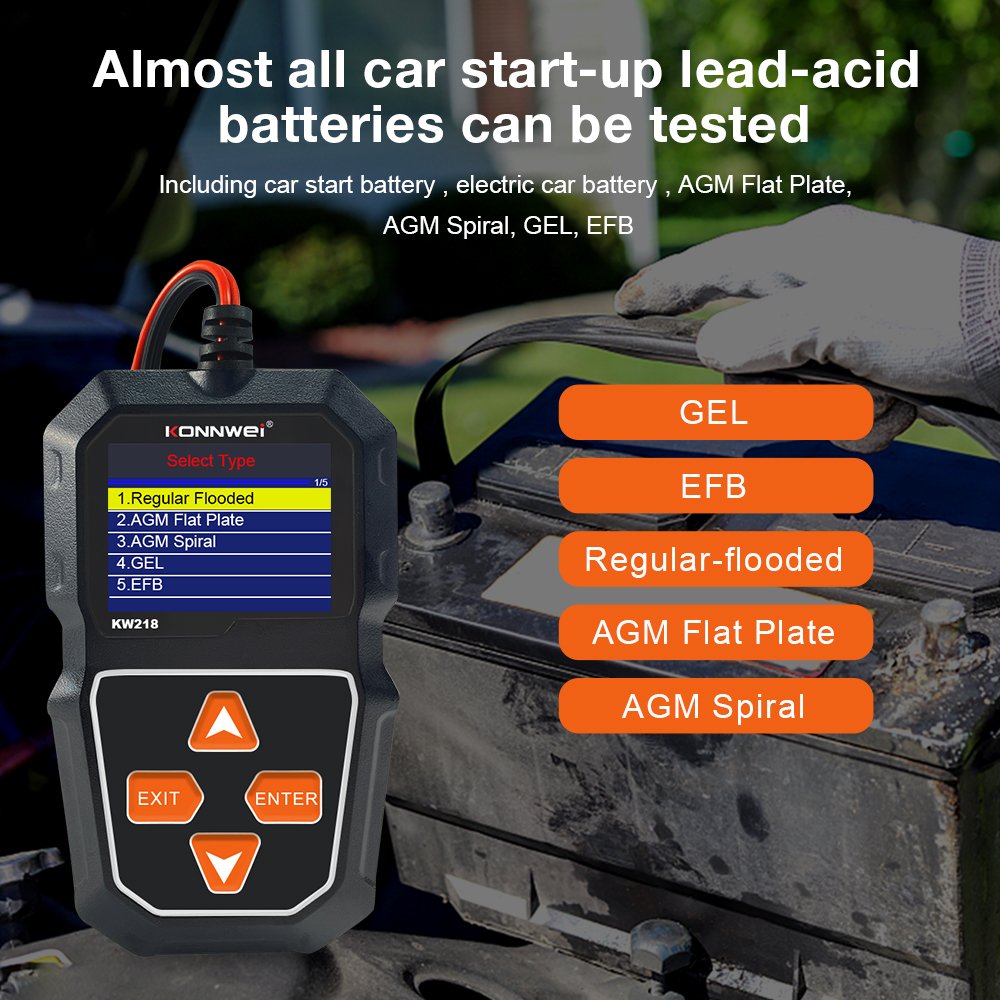

Beginner or expert, this car battery diagnostic tester can be used with a wide selection of 12V 100-2000 CCA regular flooded batteries, AGM flat plate, AGM spiral, as well as GEL batteries.
OEM orders are welcome (>=500pcs):
(1) Print logo on tool,
(2) Change model on tool,
(3) Design colorful box
(4) Design User manual
(5) Print logo on bag
(6) Change logo on system.
Input Voltage Range 6V-16V,
Power Requirements: no internal batteries required, Power on when hooked up during testing.
KW218 battery tester key functions:
1.System voltage: 6V 12 Volts
2. Test Result: Good, Recharge or Replace
3. Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4. Internal resistance value (mΩ)
5. SOC SOH in percentage (%)
6. Cranking system
7. Charging system

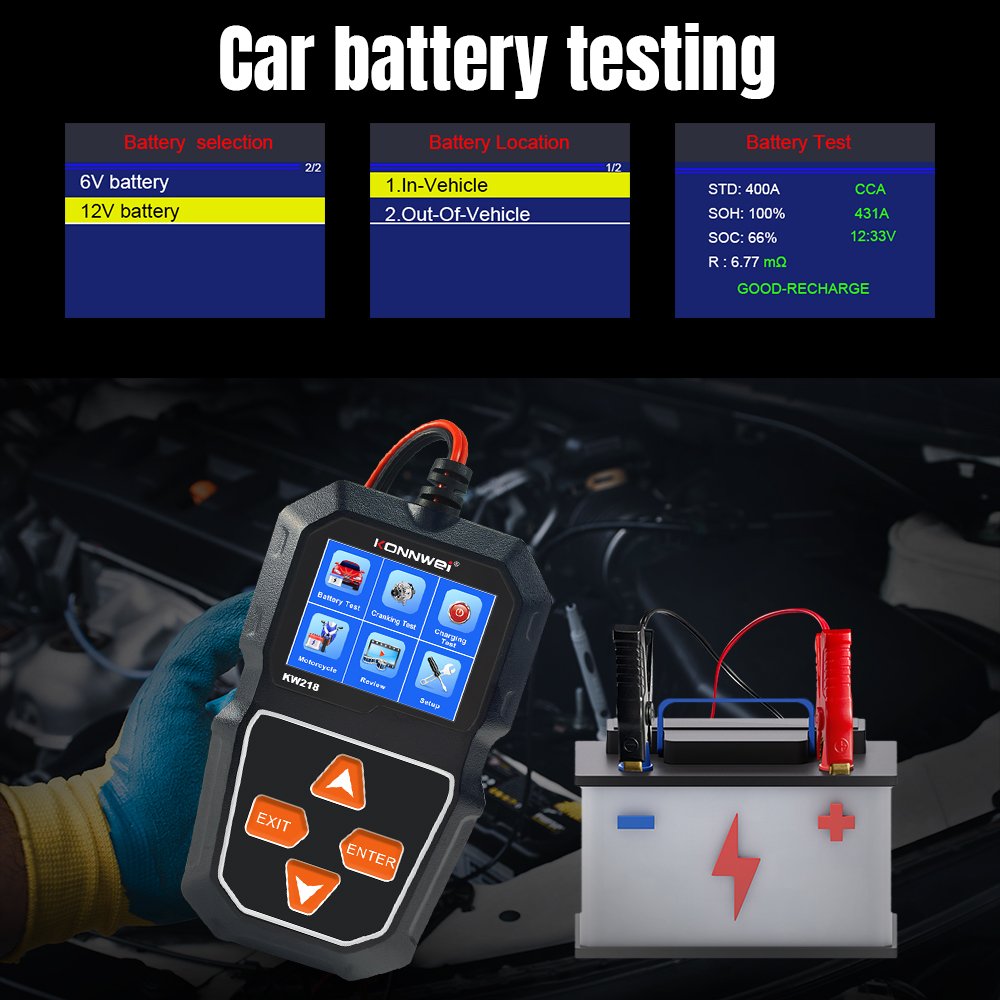

Battery position: in vehicle or out of vehicle
when battery in vehicle: can test battery voltage, inner resistance, cold cranking amps, SOC and SOH
when battery out of vehicle: can do battery health test, cranking system and charging system test
The major battery standards CA, CCA, BCL, MCA, JIS, SAE, EN, GB, DIN and IEC are supported.
Measure Standards: CCA 100-2000, BCI 100-2000 ,CA 100-2000, MCA 100-2000,
JIS 26A17-24SH52, DIN 100-1400, IEC 100-1400 ,EN 100-2000, SAE 100-2000, GB 100-1400
Motorcycle battery testing:
1, for both 6V and 12V motorcycle batteries
2, Built-in motorcycle battery rating list
