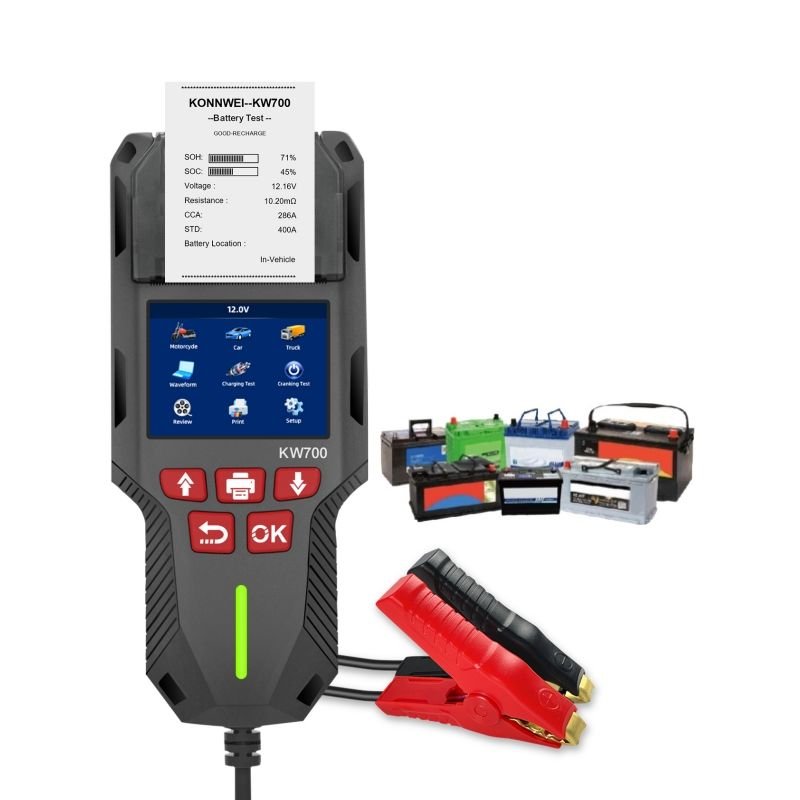

12V 24V Lead-Acid Lithium Battery Tester Analyzer with printer
1, for car

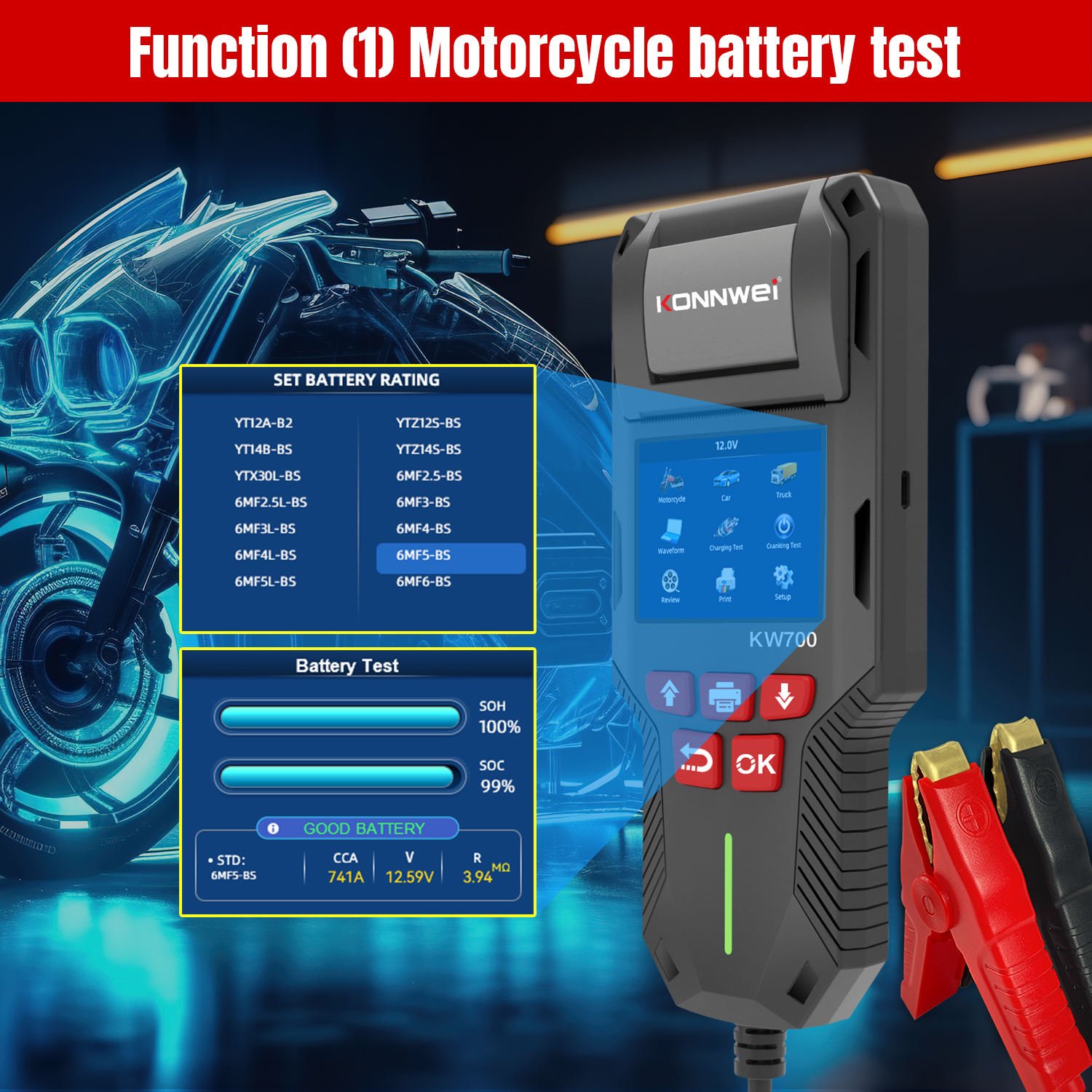

2, for motorcycle
3, for truck
KW700 konnwei Battery tools can Apply for all 12V 24V car battery include battery from gasoline, diesel, hybrid electric
vehicles, motorcycle batteries , Truck and emergency batteries.
Description :
KW700 Battery Tester adopts the state-of-the -art conductance testing technology in the word to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the find the problem quickly and accurately, thus to achieve quick vehicle repair.
The newly developed KW700 Battery Analyzer from KONNWEI aims to test start-stop AGM and EFB batteries. And it is developed to test 12V 24V regular flooded, AGM flat plate, AGM spiral and gel batteries and 12V& 24V starting and charging system. Advanced conductance test and ripple voltage test provide a quick, easy and affordable solution for technicians to check battery health and detect faults of starting and charging system. Besides, built-in thermal printer allows technicians to print the test data at anytime and anywhere.
Functions:
1. Identify battery status Good or Replace
2. Check Battery Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
3. Check Internal resistance value (Ohm)
4. Display battery life in percentage (%)

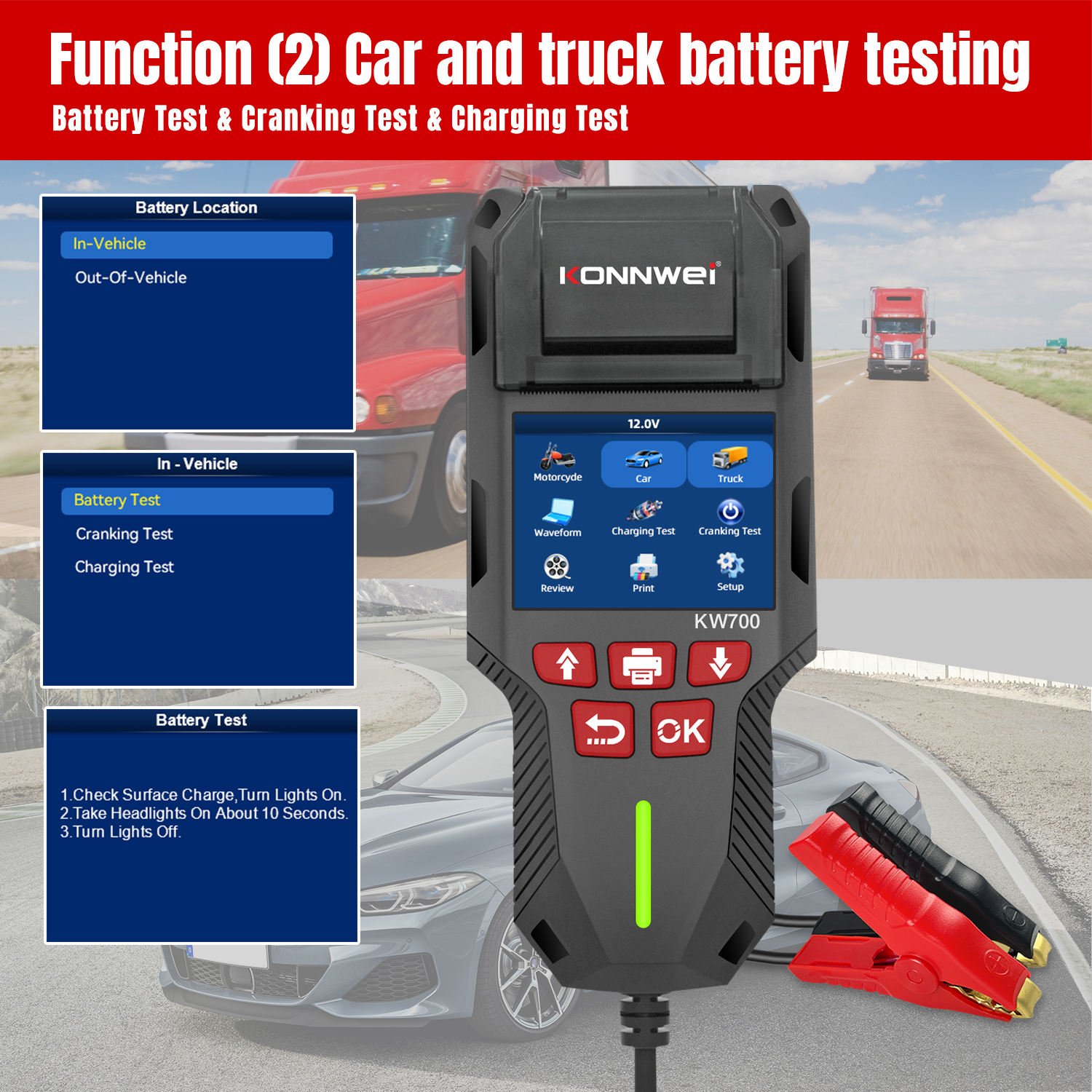

5. Battery Cranking Test, load test
6. Battery Charging Test, Ripple Test
7. Graphing voltage real time monitoring & review
8. Test results storage and review
9. Print all test results .
Battery Standard:
CCA:10-2000 / BCI:10-2000 / CA:10-2000 / MCA:10-2000.
JIS:26A17-245H52 / DIN:10-1400 / IEC:10-1400 / EN:10-2000 /SAE:10-2000/ GB: 5-220AH

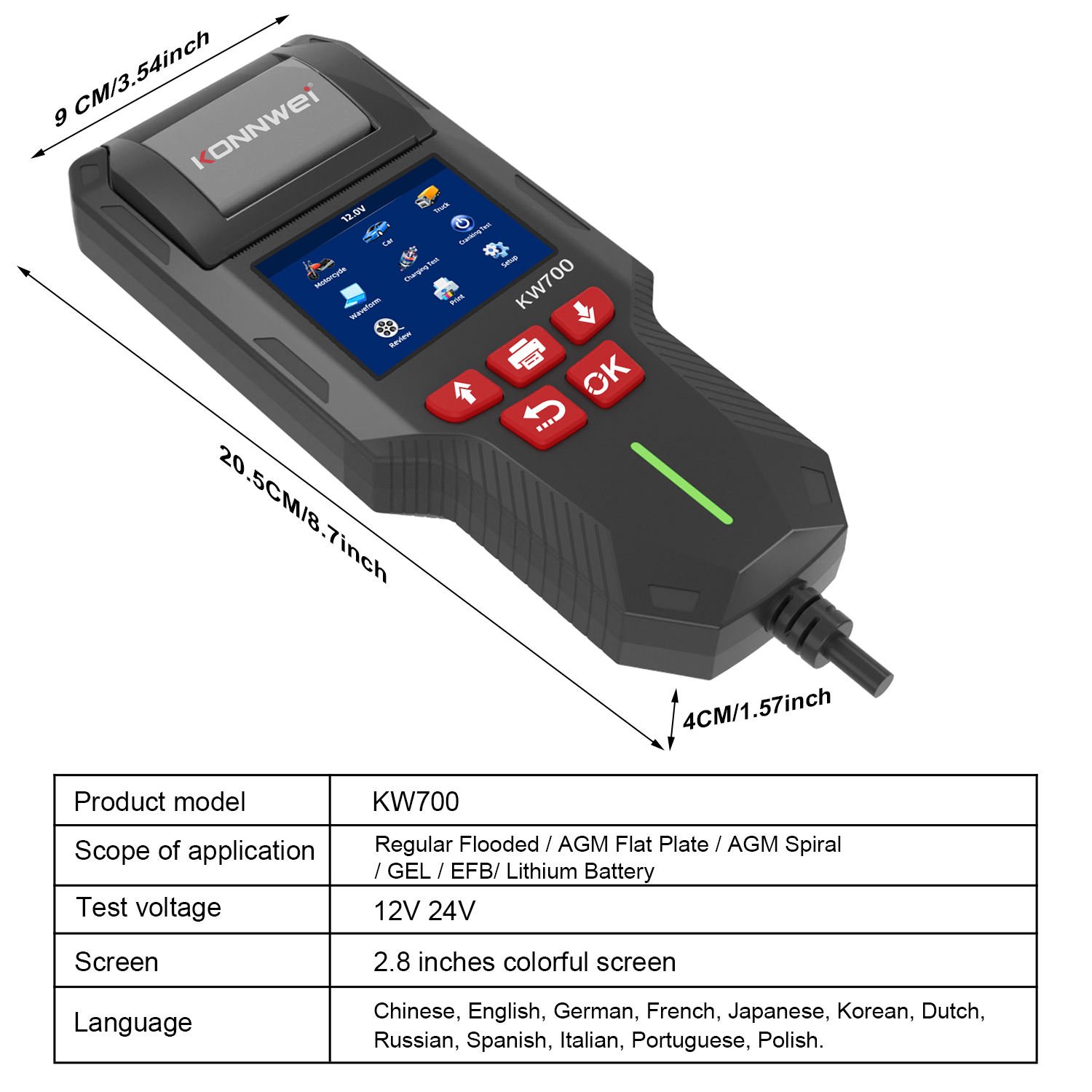

Specification:
Operating Temperature : -20 to 70 ℃ (-4 to 158 ℉)
System Voltage: 12/ 24Volts.
Input Voltage Range: 8V-30V provided via vehicle.
No internal batteries required.
Features And Benefits
01 Tests multiple battery types – regular flooded, AGM flat plate, AGM spiral and gel, GEL, EFP, and lithium batteries
02 Tests multiple rating systems – CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
03 More convenient and accurate with advanced conductance test technology
04 Ripple voltage test allows the technicians to check the output voltage of alternator quickly

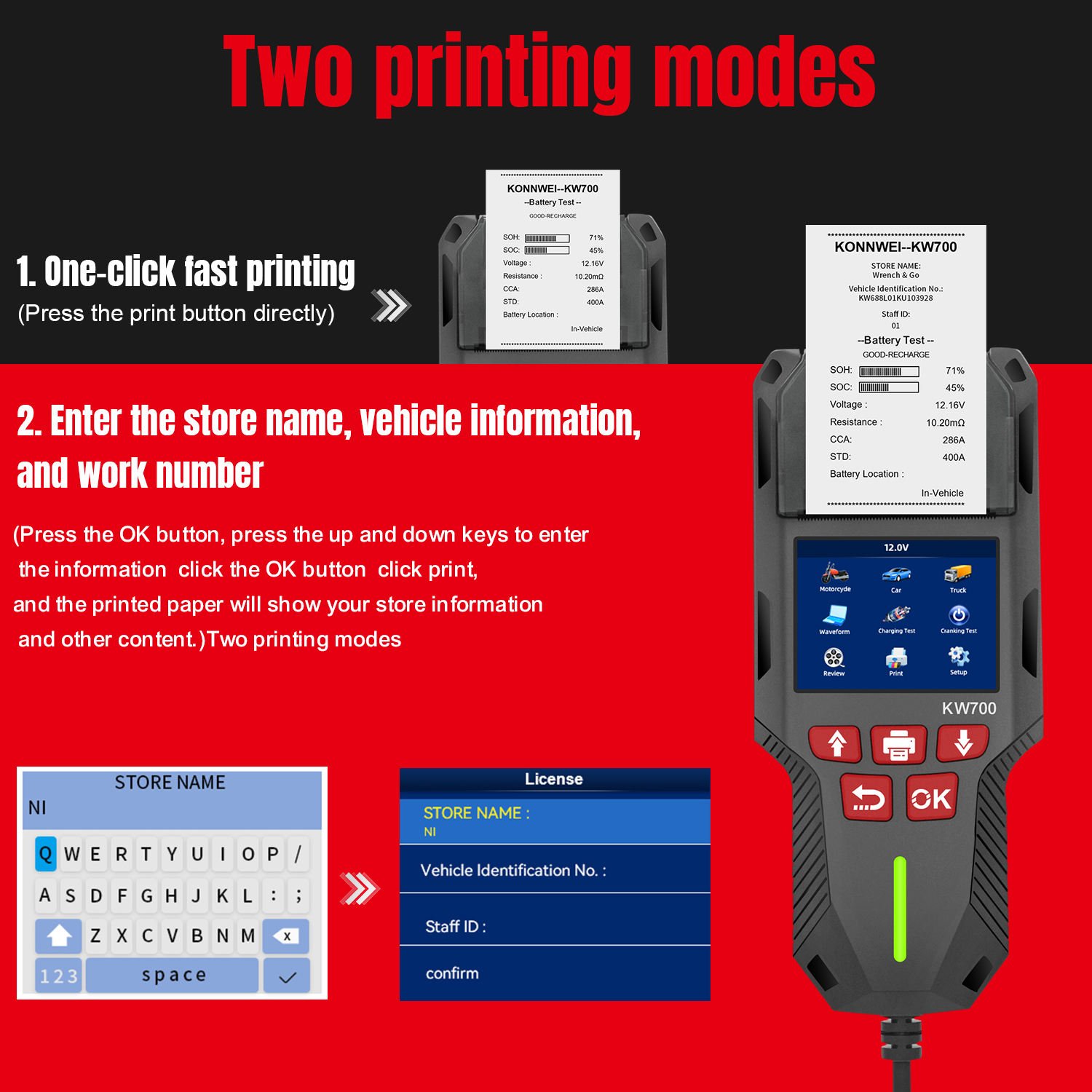

05 Built-in thermal printer to print test results at anytime and anywhere
06 SOC and SOH tests make technicians easier and faster to judge the battery status.
07 Equipped with high quality clamps
08 Replaceable test cables
09 Quick and accurate test results display in just 3 seconds
10 Applicable for 12V battery system and 12V & 24V starting and charging system
11 Advanced starter/alternator test
12 Quick starter analysis without disabling the ignition
13 Does not emit light, heat or spark, or discharge battery – keeps operation safe for all levels of users.
14 Multilingual menu and test results
15 Lifetime Free updates via USB cable
